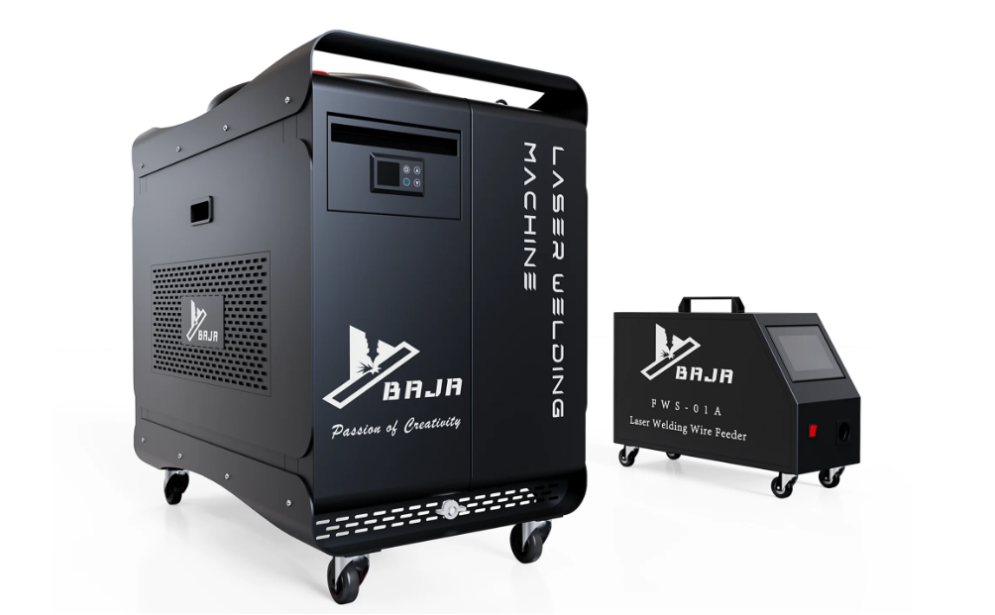

EC-2000 Laser Welding Machine
Overview
Technical Specification
|
NO. |
HW-2000W |
|
|
1 |
Interface Type |
QBH |
|
2 |
Power Range |
2000 |
|
3 |
Laser Wavelength |
1064-1080nm |
|
4 |
Collimated Focus |
50mm |
|
5 |
Focus Distance |
150mm |
|
6 |
Protective Lens |
18*2mm |
|
7 |
Cooling method |
Water-cooled |
|
8 |
Weight of gun head |
0.7KG |
|
9 |
Fiber Optic Cable Length |
10 meters |
|
10 |
Aiming Positioning |
Red light indication |
|
11 |
Weldable speed |
90-100mm/s |
|
12 |
Cooling System |
Water-cooled integrated thermostat |
|
13 |
Temperature range of working environment |
13-35° |
|
14 |
Humidity Requirements |
<70% no condensation |
|
15 |
Welding seam requirements |
≤0.05mm (Wire feeder can extend welding range by 1mm gap width) |
|
16 |
Spot width adjustable range |
Gap width) |
Shipping
Shipping Charges
- Shipping fees will be charged for all accessory orders.
Please refer to the shipping rates based on different regions.（USPS LINK）
- Accessories will be shipped within 3 business days.
- Machinery orders will be shipped within 2 to 3 weeks.
Shipping Locations
- All shipments will be made to the continental United States.
- For shipping to other regions within the U.S., please contact our customer service for assistance.
Spec
Technical Specification
|
NO. |
HW-2000W |
|
|
1 |
Interface Type |
QBH |
|
2 |
Power Range |
2000 |
|
3 |
Laser Wavelength |
1064-1080nm |
|
4 |
Collimated Focus |
50mm |
|
5 |
Focus Distance |
150mm |
|
6 |
Protective Lens |
18*2mm |
|
7 |
Cooling method |
Water-cooled |
|
8 |
Weight of gun head |
0.7KG |
|
9 |
Fiber Optic Cable Length |
10 meters |
|
10 |
Aiming Positioning |
Red light indication |
|
11 |
Weldable speed |
90-100mm/s |
|
12 |
Cooling System |
Water-cooled integrated thermostat |
|
13 |
Temperature range of working environment |
13-35° |
|
14 |
Humidity Requirements |
<70% no condensation |
|
15 |
Welding seam requirements |
≤0.05mm (Wire feeder can extend welding range by 1mm gap width) |
|
16 |
Spot width adjustable range |
Gap width) |
Warranty
Mechanical, electronic components and Fiber Laser Source: 2 years against manufacturing defects. Parts and components damaged due to improper usage and operation of the equipment are not covered under warranty. The complete warranty shall be available once the customer has accepted and received the training program and the purchase agreements are signed by the customer.
6 months against manufacturing defects. Laser optical components, like focus lens are considered consumables and are therefore not covered during the warranty period.
In order to ensure the customer experience, the best performance of the equipment and the complete warranty policy of our company, we urge following the instructions on the Safety Notice in the Operation Manual and follow the instructions of our technician on the installation of the laser machine. Failure to do so may render the warranty null and void.
Installation and Training: Technical support is offered via telephone, e-mail and other means. Installation and Training will be on-site. 18 hours of training (3 days of 6 hours) in the Installation Maintenance & Operation of the Laser Machine.
For any additional questions please do not hesitate to take contact us. We will do our best to provide any support.
